1-piece 20'-35' |
---|
|
---|
Model | Exposed Height |
Overall Length |
Set Depth |
Butt Diam. |
Top Diam. |
Wall Thick. |
Flag Size |
Unflag Max. Wind |
Flagged Max. Wind |
Shipping Weight |
---|---|---|---|---|---|---|---|---|---|---|
ECSS20 | 20' | 22' - 0" | 2' - 0" | 3" | 1 7/8" | .125 | 3x5' | 117 mph | 70 mph | 50 lbs. |
ECSS25 | 25' | 27' - 6" | 2' - 6" | 3" | 1 7/8" | .125 | 4x6' | 91 mph | 55 mph | 55 lbs. |
ECS20 | 20' | 22' - 0" | 2' - 0" | 3 1/2" | 2 3/8" | .125 | 3x5' | 125 mph | 80 mph | 55 lbs. |
ECS25 | 25' | 27' - 6" | 2' - 6" | 3 1/2" | 2 3/8" | .125 | 4x6' | 95 mph | 60 mph | 60 lbs. |
ECS30 | 30' | 33' - 0" | 3' - 0" | 4" | 2 3/8" | .125 | 5x8' | 91 mph | 55 mph | 104 lbs. |
ECS35 | 35' | 38' - 6" | 3' - 6" | 5" | 3" | .125 | 6x10' | 84 mph | 55 mph | 150 lbs. |
Special Budget 1 Piece Aluminum Flagpoles | ||||||||||||||||||||||||||||

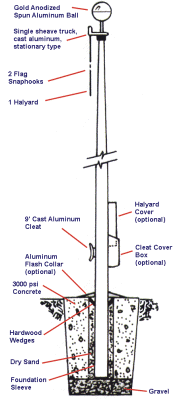

This outstanding value consists of a one-piece above ground cone tapered aluminum pole, in a choice of finishes, complete with a proper size aluminum stationary truck and gold aluminum ball, pvc ground sleeve, cleat, polypropylene rope with metal flag snaps and neoprene covers. Simple instructions are included. Design and pricing of this line makes it especially suitable for: homes, small office buildings, industrial plants, schools and similar sites. ( * Revolving truck supplied as standard equipment on ECS 35 only ) |
||||||||||||||||||||||||||||
|
---|
